PIVOT SWING LOFT GLASS DOOR 98x208 CM BLACK ALUMINIUM FRAME

PIVOT SWING LOFT DOOR 98 × 208 CM – BLACK, GLASS

The PIVOT door is a striking solution for interiors where minimalist design, large glazing and an unusual opening mechanism are important.

The door leaf is mounted on a PIVOT axis, so traditional side hinges are not required. The construction can swing open in both directions, creating a light and modern passage between rooms.

The black frame and large glass surface make this model ideal for loft, industrial and contemporary interiors.

MAIN FEATURES

• PIVOT door
• swing opening
• opens in both directions
• door leaf size 98 × 208 cm
• black aluminium frame
• large glazed surface
• minimalist loft design
• slim profiles
• modern pivot-axis opening system
• no traditional side hinges
• large black pull handle
• centred installation in the opening
• optional hold-open position at 90°
• elegant glazing divisions
• ideal for homes, apartments, offices and commercial interiors

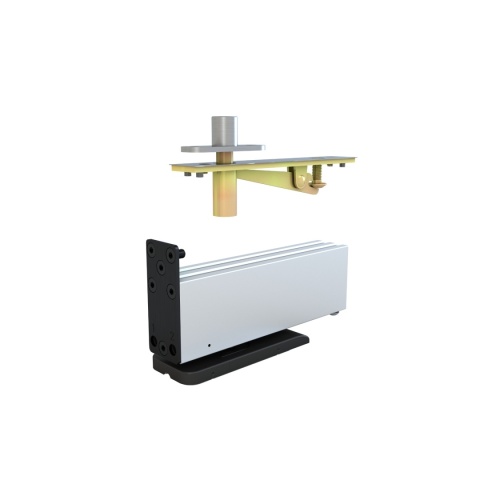

PIVOT SYSTEM – A MODERN WAY TO OPEN A DOOR

With traditional doors, the leaf rotates on hinges mounted along one of its side edges.

With the PIVOT system, the rotation point is positioned within the width of the door leaf.

As a result, the door rotates around its own axis when opening, creating a distinctive and highly impressive movement.

The PIVOT system:

• gives the interior a modern character
• eliminates the need for traditional side hinges
• provides smooth door movement
• allows opening in both directions
• works particularly well in large and representative openings

SWING DOOR – OPENS BOTH WAYS

The construction allows the door leaf to open into either adjoining room.

This is especially practical between a living room, kitchen, dining area, study or hallway.

The system can operate with the door held open at:

90°

or without a hold-open function, depending on the mechanism setting.

BLACK ALUMINIUM FRAME

The door leaf features a modern, slim frame.

Black profiles create a distinctive loft appearance and work well with:

• architectural concrete
• wood
• brick
• light-coloured walls
• black accessories
• glass
• minimalist interiors

LARGE GLAZED SURFACE – MORE LIGHT

The large glass surface allows light to pass between rooms.

The door separates spaces functionally without creating a heavy visual barrier.

It is an excellent choice for modern open-plan interiors.

LOFT-STYLE GLAZING BARS

The door leaf features decorative black divisions that give it a distinctive industrial look.

The glazing layout combines large glass areas with geometric detailing, allowing the door to become a decorative feature of the interior as well.

LARGE BLACK PULL HANDLE

The door is fitted with a simple, elongated pull handle matched to the colour of the frame.

Its minimalist shape emphasises the loft character of the entire door leaf.

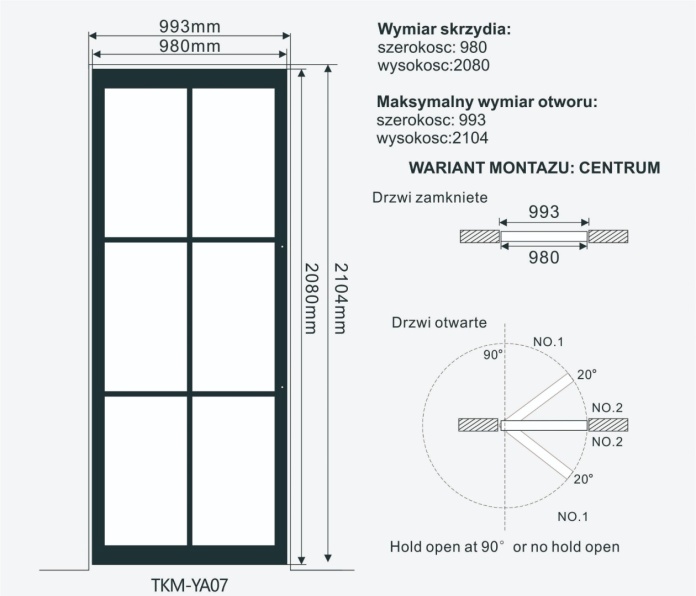

DOOR LEAF DIMENSIONS

Width:

980 MM

Height:

2080 MM

That is:

98 × 208 CM

MAXIMUM OPENING SIZE

Maximum intended installation opening:

Width:

993 MM

Height:

2104 MM

Before purchase, carefully check the finished opening dimensions as well as the floor and upper opening preparation required for the PIVOT mechanism.

CENTRED INSTALLATION

This offer refers to the:

CENTRED INSTALLATION VERSION

The door leaf is positioned in the centre line of the opening.

When closed, the door creates a clean, symmetrical passage, while when opened it can rotate in both directions.

WHERE IS THE PIVOT DOOR SUITABLE?

This model works particularly well between:

• living room and dining room
• living room and kitchen
• hallway and living area
• study and living room
• walk-in wardrobe and bedroom
• entrance hall and representative area
• office spaces
• hotel interiors
• commercial interiors

SPECIFICATION

Type: interior PIVOT door
Opening method: swing / pivot
Opening direction: both ways
Door leaf size: 980 × 2080 mm
Door leaf width: 98 cm
Door leaf height: 208 cm
Maximum opening size: 993 × 2104 mm
Frame material: aluminium
Frame colour: black
Panel: glass
Style: loft / industrial / modern
Glazing division: bars
Pull handle: yes, black
System: PIVOT
Installation version: centred
Opening: both directions
Hold-open option: 90°
Installation: floor and upper opening mounting

WHY CHOOSE A PIVOT DOOR?

A PIVOT door stands out clearly from traditional hinged doors.

Instead of standard hinges, it uses a modern pivot mechanism that allows the door leaf to move smoothly around its own axis.

The black aluminium frame, large glazed surface and loft-style divisions create a striking feature in a modern interior.

IMPORTANT INFORMATION BEFORE PURCHASE

Before installation, carefully check:

• the width and height of the finished opening
• floor level
• wall alignment
• the possibility of securely fixing the lower and upper mechanisms
• the clearance needed for the door leaf to rotate freely in both directions

Because of the way the PIVOT system operates, correct opening preparation and precise installation are essential.

PIVOT 98 × 208 cm – black aluminium frame, large glazing and impressive swing opening in both directions.
